*(120V) Wifi enabled, waste water direct to drain included
STATCLAVE can efficiently sterilize and dry wrapped instrument loads in as little as 38 minutes.
Closed-door drying and vacuum technology results in perfectly dried instruments every time.
SciCan’s G4 equipment can connect and send information to your smart devices or computer so you can have cycle data, instructions, and maintenance notifications at your fingertips.
STATCLAVE’s 11” chamber can sterilize up to four full-size cassettes and 4 exam cassettes or 20 pouches with included pouch racks.
STATCLAVE offers a number of filling & draining options, including easily accessible and cleanable top reservoirs, front manual fill and a rear automatic fill option that can be connected to the VistaPure water filtration system for automated filling.
Fresh water is used in every cycle, reducing the buildup of oils and debris.

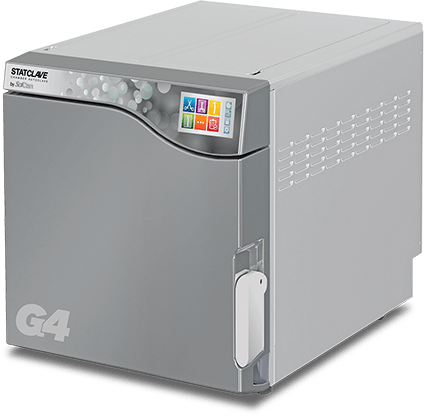

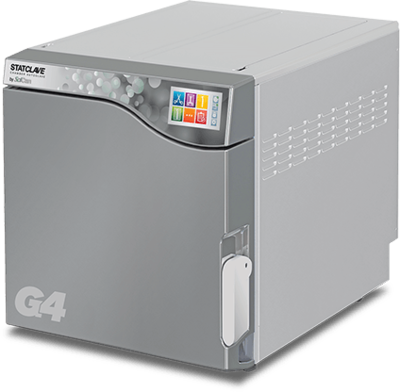

Featuring the STATCLAVE G4 Chamber Autoclave for sterilizing dental instruments.
Ted Gray and Melissa Summerfield discuss the latest innovation from SciCan, the STATCLAVE G4 Chamber Autoclave.
Cycles |
Temperature / Time |
Cycle Times* |
Maximum Load Weight |
STATCLAVE G4 |
|||
---|---|---|---|
Solid Unwrapped |
270°F (132°C) / 4 mins |
18 mins |
13.2 lbs (6 kg) |
Solid Wrapped |
270°F (132°C) / 4 mins |
44 mins |
13.2 lbs (6 kg) |
Hollow Unwrapped |
270°F (132°C) / 4 mins |
23 mins |
13.2 lbs (6 kg) |
Hollow Wrapped |
270°F (132°C) / 4 mins |
50 mins |
13.2 lbs (6 kg) |
Textiles/Porous |
270°F (132°C) / 4 mins |
49 mins |
4.4 lbs (2 kg) |
Rubber & Plastic |
250°F (121°C) / 20 mins |
36 mins |
4.4 lbs (2 kg) |
*Cycle time will vary depending on instrument load.
STATCLAVE G4 |
|
---|---|
Unit size (L x W x H)† |
25” x 17.75" x 19.5" / 635 x 450 x 495mm |
Volume |
6.87 gal (26 L) |
Chamber Dimensions (D x L) |
11" diameter, 15" depth / 297 x 381mm |
Weight |
61.6 kg (135.8 lbs) (without water and packaging) |
Voltage |
120V, 60Hz, 12 A |
†On the right side, allow 2” (50mm) of space for ventilation. Allow for at least 7” (180mm) above unit to enable access to reservoirs. If less than 7” (180mm), screw on hinges can be removed to allow reservoir lid to slide in and out of position.
STATCLAVE G4 Quick Reference Guide
