Name: Cover NextGen WIFI Complete 2000G4
Brand: SciCan
SKU: 01-114706S
Price: 1173.34 USD
Availability: PreOrder

+2

Cover NextGen WIFI Complete 2000G4

Product Details

Brand: SciCan

Weight: 16 lbs

Replacement cover for Statim 2000 G4 autoclaves

Replace it!

More details: Technical Service Bulletin 21-TSB-424

Description:

Implementation of the new G4+ LCD Controller board for STATIM® G4 2000 and 5000.

Models and Markets: All STATIM® G4 units; worldwide.

Summary:

Summary: Due to the current global electronic component shortages, the LCD Controller board currently used in STATIM G4 units will be replaced by the 3rd generation LCD Controller board (G4+ board). Technicians should know that there are now three different LCD controller board types.

Replace a 3rd Generation (G4+) LCD board with a 3rd Generation (G4+) LCD board.
Replacement 2nd Generation (Next Gen) LCD boards continue to be available. Use 2nd Generation (Next Gen) LCD boards to replace 2nd Generation (Next Gen) LCD boards.
Replacement 1st Generation (Old Gen) LCD boards are no longer available. Replace 1st Generation board using a complete cover assembly that includes a 2nd Generation (Next Gen) LCD board.

Action Required: This information is provided to help reduce confusion and increase technician efficiency when ordering and replacing LCD controller boards.

1. Identifying LCD controller boards

Identifying whether it is a 1st Generation (Old Gen), 2nd Generation (Next Gen) or 3rd Generation (G4+) LCD controller board.

On a functioning unit

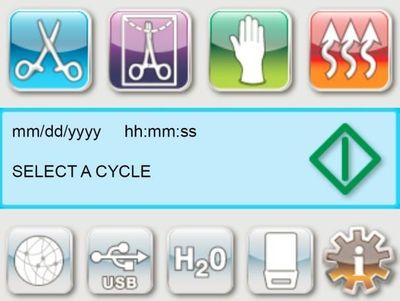

If the unit is functioning, press Settings to view the unit’s software version information.

=>

Figure 1. Press SETTINGS to find the software versio

n number.

SOFTWARE

VER. NUMBER

SL00R1XX

SL01R128 and up

SL12R100 and up

LCD BOARD

TYPE

1st Generation (Old

Gen) LCD Board

2nd Generation (Next Gen) LCD Board

3rd Generation (G4+) LCD Board

WHAT TO DO

Units with LCD

controller boards with ‘SL00’ series software (SL00R1XX) will require a complete

replacement cover that comes with all needed components pre– see 1st Generation LCD

Board 10-112305 in the spare parts Table 3 in section 3, below.

Units with LCD

controller boards with ‘SL01’ series software (SL01R128 and up) will require only the

replacement of the LCD controller board – see 2nd Generation LCD Board 10-114610 in the spare parts Table 3 in section 3, below.

Units with LCD

controller boards with ‘SL12’ series software (SL12R100 and up) will require only the

replacement of the LCD controller board – see 3rd Generation LCD Board 10-116682 in the spare parts Table 3 in section 3, below.

Table 1. Identifying board types using software versions.

On a non-functioning unit

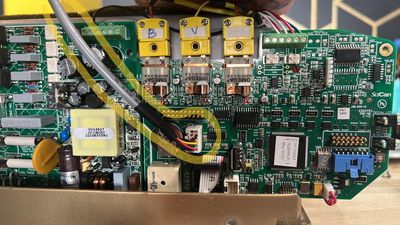

If the unit’s LCD is not functioning, you will have to remove the cover and fascia and read the information that is printed on the LCD controller board as shown in Table 2.

BOARD TYPE AND NUMBER	WHERE THE NUMBER IS LOCATED ON THE BOARD	WHAT TO DO
1st Generation (Old Gen) LCD Board 10- 112305		Units with an LCD controller board part number 10-112305 (old generation) will require complete replacement cover that comes with all needed components preassembled – see 1st Generation LCD Board 10-112305 in the spare parts table in section 3, below.
2nd Generation (Next Gen) LCD Board 10- 114610		Units with an LCD controller board part number 10-114610 (next generation) will require only the replacement of the LCD controller board – see 2nd Generation LCD Board 10-114610 in the spare parts table in section 3, below.
3rd Generation (G4+) LCD Board 10-116682		Units with an LCD controller board part number 10-116682 (G4+) will require only the replacement of the LCD controller board since the LCD touch screen and unit fascia are compatible with the G4+LCD controller board –see 3rd Generation LCD Board 10-116682 in the spare parts Table 3 in section 3, below.

Table 2. Identifying board types visually.

2. What models are affected?

STATIM units built in or after May 2022 will have the 3rd Generation (G4+) LCD Controller boards.

3. Determining the spare parts you will need

1st Generation (Old Gen) LCD Board 10-112305	Statim 5000 WIFI	01-114710S Cover NextGen WIFI ST5000S G4 noP
	Statim 5000 no WIFI	01-112393S Cover NextGen ST5000S G4 no Printer
	Statim 2000 WIFI	01-114706S Cover NextGen WIFI Complete 2000G4
	Statim 2000 no WIFI	01-112414S Cover NextGen Complete ST2000 G4

2nd Generation (Next Gen) LCD Board 10-114610	Statim 5000 WIFI	01-115465S Logic WIFI PCB Statim G4 NextGen
		01-115318S LCD NextGen module Statim 5000/SG4
		01-114710S Cover NextGen WIFI ST5000S G4 no Printer, for units with Rev 7 controller boards
		01-115563S Cover NextGen WIFI 5000S G4 no Printer, for units with Rev 8 controller boards
	Statim 5000 no WIFI	01-115313S Logic PCB Statim G4 NextGen Kit
		01-115318S LCD NextGen module Statim 5000/SG4
		01-112393S Cover NextGen ST5000S G4 no Printer, for units with Rev 7 controller boards
		01-115562S Cover NextGen 5000S G4 no Printer, for units with Rev 8 controller boards
	Statim 2000 WIFI	01-115465S Logic WIFI PCB Statim G4 NextGen
		01-115317S NextGen LCD module Statim 2000/SG4
		01-114706S Cover NextGen WIFI Complete 2000G4, for units with Rev 7 controller boards
		01-115565S Cover NextGenComplete WIFI 2000G4, for units with Rev 8 controller boards
	Statim 2000 no WIFI	01-115313S Logic PCB Statim G4 NextGen
		01-115317S NextGen LCD module Statim 2000/SG4
		01-112414S Cover NextGen Complete ST2000 G4, for units with Rev 7 controller boards
		01-115564S Cover NextGen Complete ST2000 G4, for units with Rev 8 controller boards

3rd Generation (G4+) LCD Board 10-116682	Statim 5000 WIFI	01-116785S Logic PCB Statim G4+ WIFI kit
		01-115318S LCD NextGen module Statim 5000/SG4
		01-116779S Cover G4+ Complete WIFI 5000S NoPr, 8
	Statim 5000 no WIFI	01-116784S Logic PCB Statim G4+ kit
		01-115318S LCD NextGen module Statim 5000/SG4
		01-116776S Cover G4+ Complete 5000S NoPrinter,8
	Statim 2000 WIFI	01-116785S Logic PCB Statim G4+ WIFI kit
		01-115317S NextGen LCD module Statim 2000/SG4
		01-116778S Cover G4+ Complete WIFI 2000G4, 8
	Statim 2000 no WIFI	01-116784S Logic PCB Statim G4+ kit
		01-115317S NextGen LCD module Statim 2000/SG4
		01-116777S Cover G4+ Complete ST2000 G4+, 8

Table 3. Determining the spare part kit number.

4. Replacing an LCD controller board

1st Generation (Old Gen) LCD Board 10-112305

To complete this repair, replace the cover using a complete cover replacement kit that includes a cover, fascia, LCD controller board, and LCD display module with decal. See Service Guide for instructions on removing and replacing the cover.

IMPORTANT!

Before you begin the repair, record the original unit’s serial number, cycle count and calibration offset values.
Remove the MicroSD card from the old LCD controller board in the cover assembly and copy the SCILOG folder to a computer.
Remove the MicroSD card from the new LCD controller board in the new cover assembly and insert it into the microSD card reader connected to your computer.
Select the SCILOG folder on your computer and copy it to the microSD card. If the computer prompts you to replace existing folders and /or directories, select ‘Yes to All.’
Insert the microSD card into the new LCD controller board in the new cover assembly and install the new cover assembly.
On completing the repair, calibrate the level.

2nd Generation (Next Gen) LCD Board 10-114610

To complete this repair, you can replace the LCD controller board only or perform a complete cover replacement using the kit that includes a cover, fascia, LCD controller board, and LCD display module with decal. See Service Guide for instructions on removing and replacing the cover and LCD controller board.

IMPORTANT!

Before you begin the repair, record the original unit’s serial number, cycle count and calibration offset values.
Remove the MicroSD card from the old LCD controller board and copy the SCILOG folder to a computer.
Remove the MicroSD card from the new LCD controller board and insert it into the microSD card reader connected to your computer.
Select the SCILOG folder on your computer and copy it to the microSD card. If the computer prompts you to replace existing folders and /or directories, select ‘Yes to All.’
Insert the microSD card into the new LCD controller board and install the new LCD controller board.
On completing the repair, calibrate the level.

3rd Generation (G4+) LCD Board 10-116682

Record the original unit’s serial number, cycle count and calibration offset values.
Remove the LCD controller board.
Remove the MicroSD card from the old LCD controller board and copy the SCILOG folder to a computer or USB device for the customer to preserve the cycle records.
On the new LCD board, connect the Ethernet cable, RS232 communication cable to the main controller, speaker and USB. Connect the grounding wire.
Connect the LCD display ribbon cable, pushing it down into position and closing the hinged connector. Give the ribbon cable a gentle tug to ensure it is properly held in position.
Reinstall the cover.
Power the unit ON. It may take a few minutes for the software to load. Once the Home screen appears, check that the unit has the correct serial number, cycle count and calibration values. If the unit does not have the correct information, go to the technician menu and activate the BACKUP NVRAM function. Check the other unit settings and adjust as needed.
Calibrate the level.

IMPORTANT!
When the cover is removed, a dielectric strength test (Hi-Pot) AND a protective bonding impedance test (ground continuity) must be performed on the STATIM when the work is completed and after the cover has been returned to the unit.
